Heavy-Duty Textured Vacuum Sealer Rolls for Food Storage

Multi-Layer Film Composition of the Heavy-Duty Vacuum Sealer Rolls

The rolls are manufactured using a combination of film materials, which may include polyamide film (PBOPA), aluminum-based film (ALU), cast polypropylene (CPP), biaxially oriented polypropylene (BOPP), polyethylene (PE), polyethylene terephthalate (PET), and polyvinylidene chloride (PVDC), selected according to the barrier and mechanical strength required for a given application. Each layer within the structure performs a distinct role, generally arranged as follows:

• Outer layer: typically composed of BOPP or PET, providing dimensional stability, puncture resistance, and a stable surface for printing.
• Barrier layer: incorporating materials such as ALU or PVDC to restrict the passage of oxygen, moisture, and odor through the film.
• Inner layer: generally PE or CPP, forming the heat-sealing surface that creates the airtight closure once the bag is sealed.

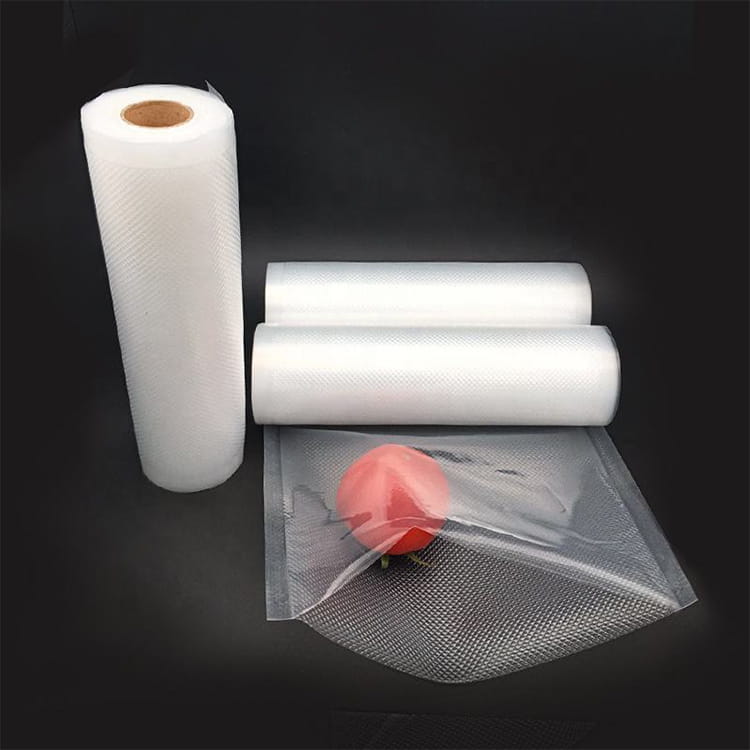

Textured Surface Structure for Efficient Air Extraction

One side of the film is produced with a raised, channeled, or embossed texture rather than a flat finish. Once the film is folded and sealed along two or three sides to form a bag, these channels create narrow air pathways that run toward the open end of the bag, allowing residual air to travel more directly to the vacuum port during the sealing cycle. This construction is a common approach for roll-format vacuum sealer film, as it helps reduce the likelihood of air becoming trapped in isolated pockets, which can otherwise affect the consistency of the vacuum across food items of different shapes and thicknesses.

Color Printing and Surface Pattern Customization

The film rolls support color printing, with the printed design generally applied to the PE film layer rather than to the outer structural or barrier layers. Because the printing is handled independently from the functional layers of the film, the visual pattern is not restricted to a single design, and a range of colors and graphic styles can be produced to suit different packaging requirements. This separation between the printed surface and the functional film structure allows the outer appearance of the roll to be adjusted without changing its barrier or sealing performance.

Application Range for Food Storage and Preservation

Heavy-duty textured vacuum sealer rolls are applicable across a broad range of food storage tasks, supporting both portion-based household use and higher-volume preparation. Typical applications include:

• Fresh and frozen meat, poultry, and seafood intended for short-term or long-term cold storage.
• Vegetables, fruits, and prepared meals stored for later use or batch cooking.
• Dry goods such as grains, nuts, dried fruit, and snack items requiring protection from moisture and air exposure.

Depending on the specific film structure selected, certain rolls may also be suitable for items intended for water-bath cooking methods, where the seal must remain stable while submerged for an extended period.

Compatibility and Usage with Vacuum Sealing Equipment

The roll format is designed for vacuum sealing machines that accept film rolls rather than pre-cut bags, allowing the user to determine the bag length for each use rather than relying on a fixed bag size. Before first use, it is advisable to confirm that the roll width is suited to the sealing chamber and cutting mechanism of the specific machine being used. A typical sequence for preparing and sealing a bag from the roll includes the following steps:

1. Measure the item to be packaged and cut the required length of film from the roll, allowing sufficient extra length for the seal.
2. Fold or position the film so that one end is sealed to form the base of the bag, then place the food item inside.
3. Load the open end into the sealing chamber of the vacuum sealing machine and run the vacuum and sealing cycle according to the machine instructions.

Storage and Handling Recommendations for the Film Rolls

To maintain consistent sealing performance, unused rolls should be stored in a dry, clean area away from direct sunlight and excessive heat, both of which can affect the flatness and sealing behavior of the film over time. Keeping the roll on its original core or holder helps avoid sharp creases, since a fold across the textured or sealing surface may weaken the seal at that location. During use, handling the cut edge of the film carefully when loading it into the sealing machine also supports a more even and reliable seal line.
